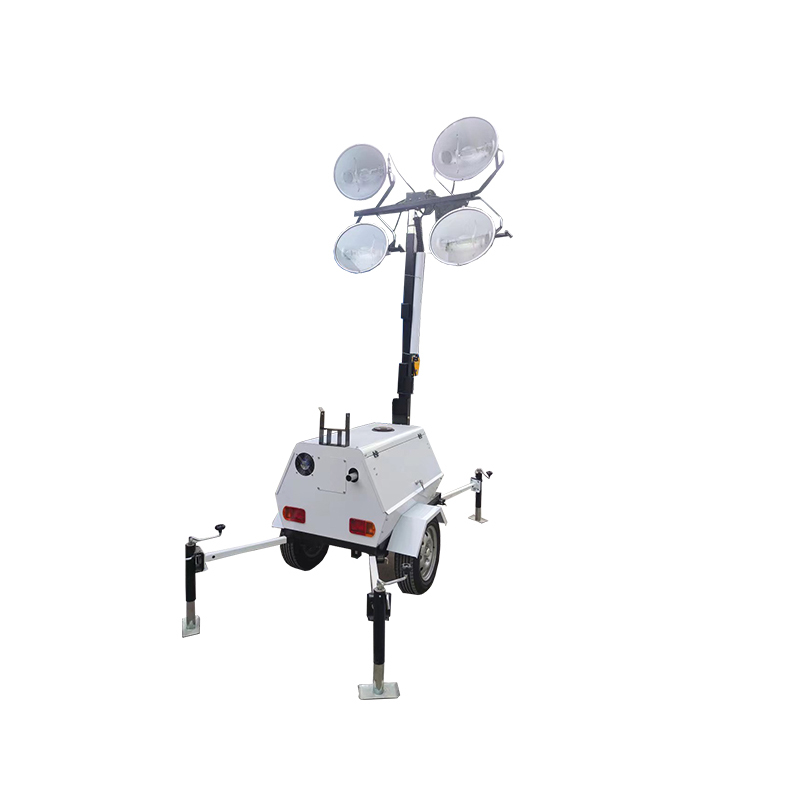

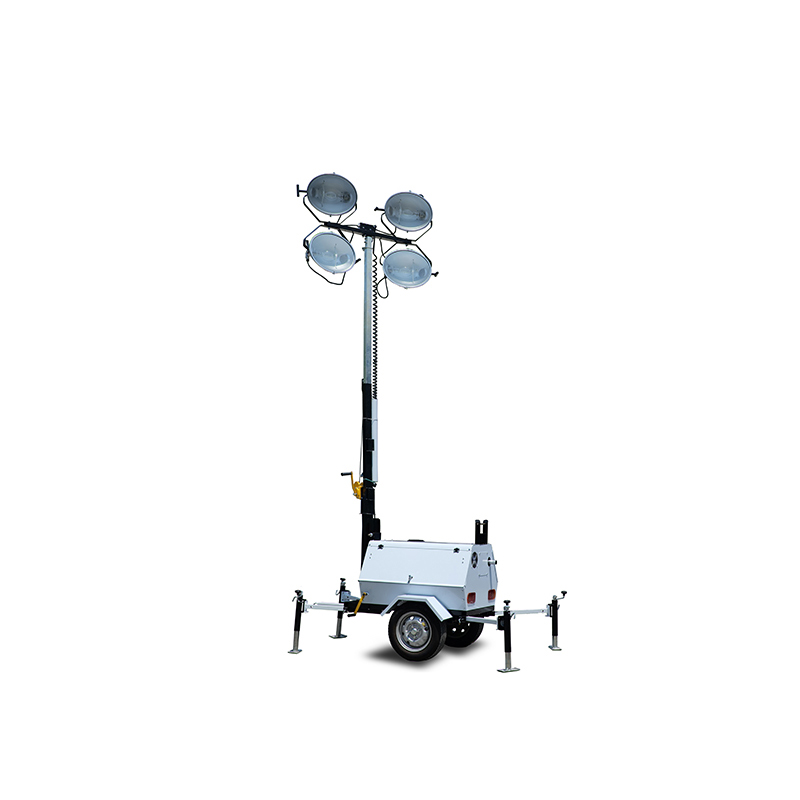

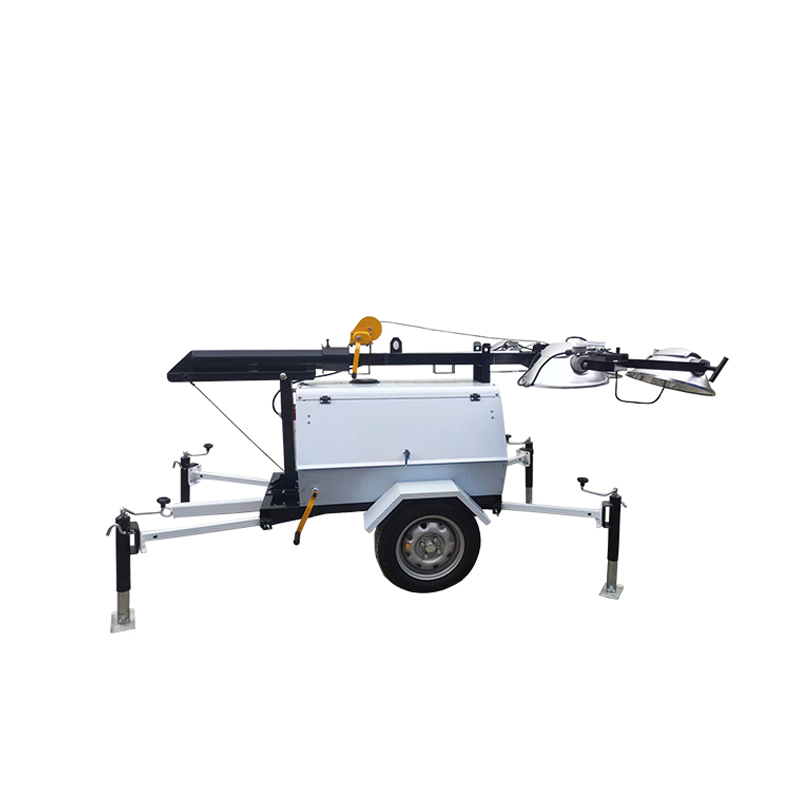

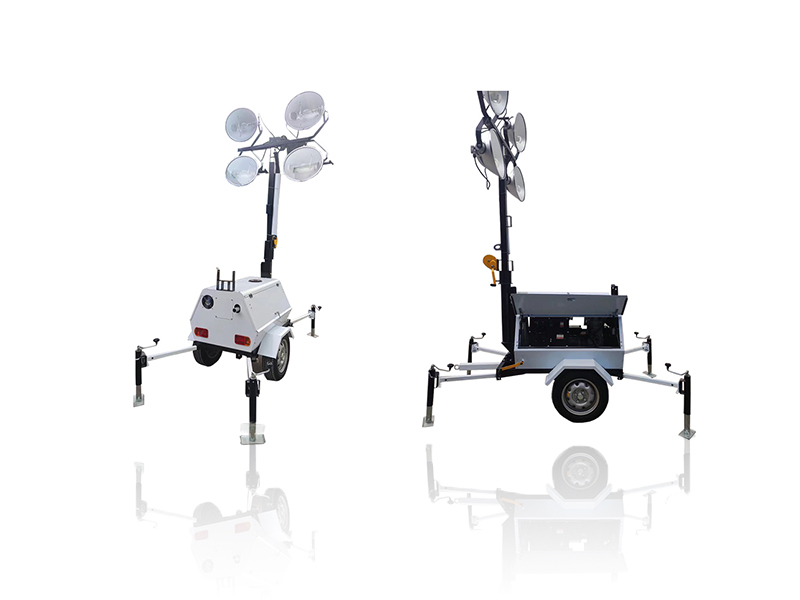

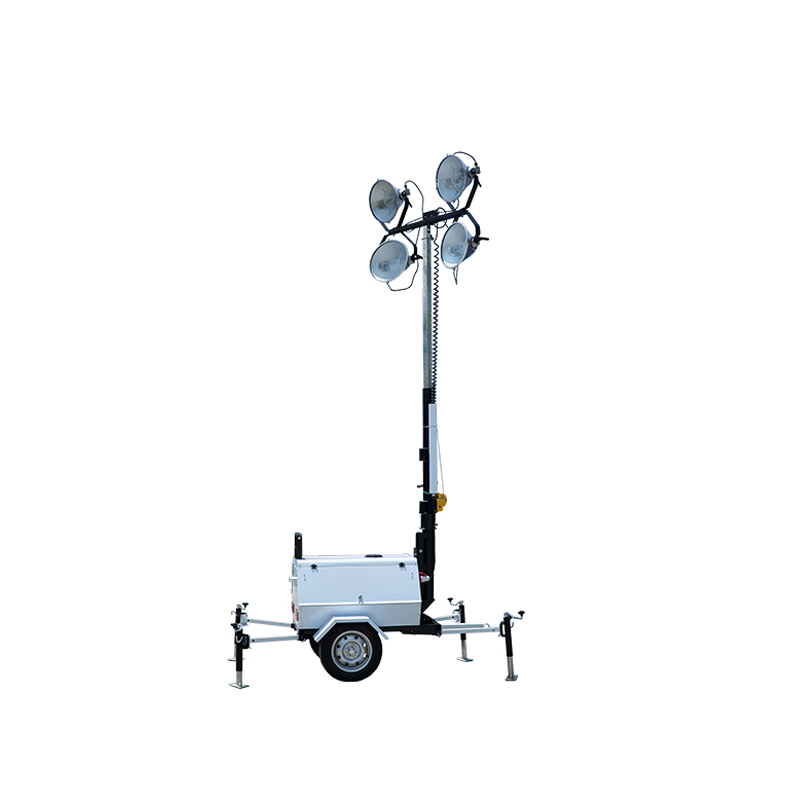

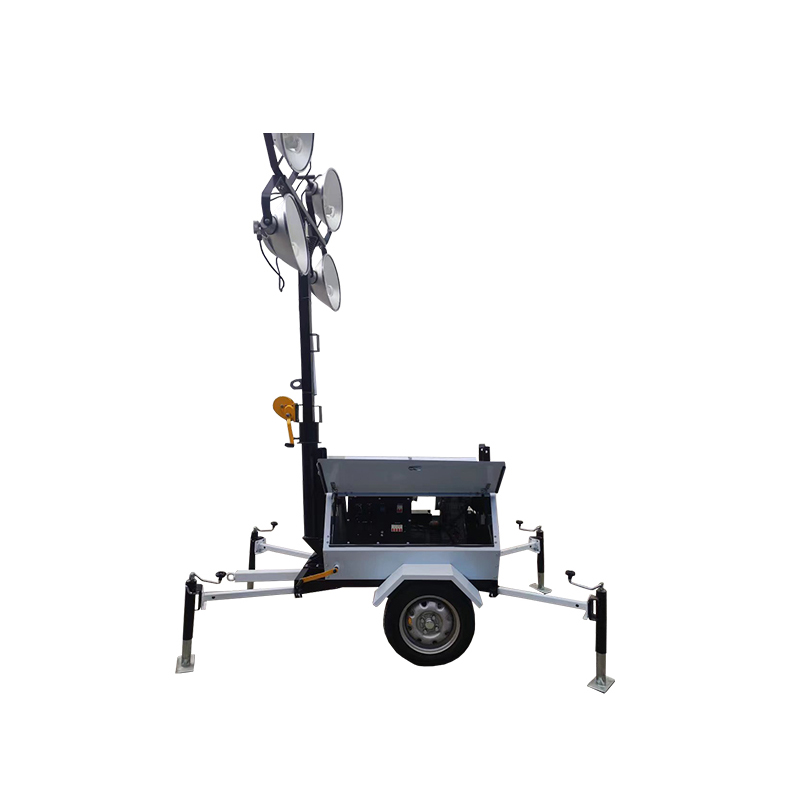

Portable light tower with built-in generator for powerful lighting and reliable power in remote or job site applications.
Model :
ON2K-5MSpeed :
3000/3600RPMRated Net Output（PRP) :
50Hz/60HzCoolant :
WaterNumber of cylinders :
1Light Coverage m2 :
4*400WLamps :
LEDMast :
Vertical MechanicalFeatures :
Gull wing canopy
Product Features：
| Model | ON2K-5M |
| Type of lights | Metal halide lamp |
| No. & Power of Lights | 4*1000W |
| Lights Bar Tilting System | 90°Manual Operation |
| Mast Lifting System | Vertical Mechanical |
| Mast Section | 3 |
| Max. Height of Mast |
5m |
| Brake System |
Mechanical Parking Brake |
| Engine Model |
HD192FDE |
| Speed |
3000/3600RPM |
| Max. Power |
14HP |
| Displacement |
498CC |
| No.of Cylinder |
1 |
| Engine Type |
Air cooled,4-stroke Diesel |
| Rated frequency |
50Hz/60Hz |
| Rated voltage | 110V,120V,220V,230V,240V |
| Rated Power | 6.0/6. 5KW |
| Alternator Model | RTE-7KW |
| Fuel tank capacity |
16L |
| Continuous Operation Time |
7h |
| Output Scoket |
2 |
| Controller Model |
Mechanical meters |
| Dimensions | 1200*600*2200mm |
| Net weight | 340Kg |
Construction & Roadwork – Night shifts, remote sites
Mining & Oilfields – Hazardous area lighting
Emergency Lighting – Disaster recovery, power outages
Events & Security – Outdoor festivals, parking lots
All-in-One Solution – No separate generator needed
Fuel & Energy Efficient – Save up to 40% on diesel costs (hybrid models)
Global Certifications – CE, ISO, OSHA-compliant
24/7 Support – Spare parts & technical assistance
Space-saving: Combined power+lighting reduces site equipment by 40%
Fuel-efficient: Smart throttle saves 15-20% vs conventional systems
Quick deployment: Fully operational in <5 minutes
For project-specific configurations (voltage, mast height, lighting patterns), please consult our engineering team.
FUZHOU ONEW CERTIFICATE
Established: 2015 (Fuzhou, China)
Focus: Third-party certification for electromechanical products
Generators & power systems
Industrial lighting equipment
Marine/offshore components
Light tower Opitonal Engine Brands
For customers requiring diesel-powered light towers, we offer a selection of high-performance engines from globally recognized manufacturers.
